Frigidaire dishwasher troubleshooting codes [Meaning and Fixes]

As an Amazon affiliate, we earn a commision from qualifying purchases.

Frigidaire dishwasher troubleshooting codes: Of course, one of the ways your Frigidaire Dishwasher signals faults is by throwing an error code.

This guide will help you troubleshoot Frigidaire dishwasher error codes- suffice to say that each Frigidaire dishwasher error code points to a different issue(they’re not universal)


Frigidaire dishwasher troubleshooting codes – What individual Frigidaire dishwasher fault codes signal and how to fix (the issue causing the Frigidaire dishwasher code you are seeing)


Frigidaire dishwasher code 188

What it means:

If Frigidaire dishwasher error code 188 is flashing, it could point to a damaged door latch(meaning unit door is not closing properly)

How to resolve the code

Try to observe if there’s a loose connection on the latch mechanism(when not-latched) and see if you can fix it.

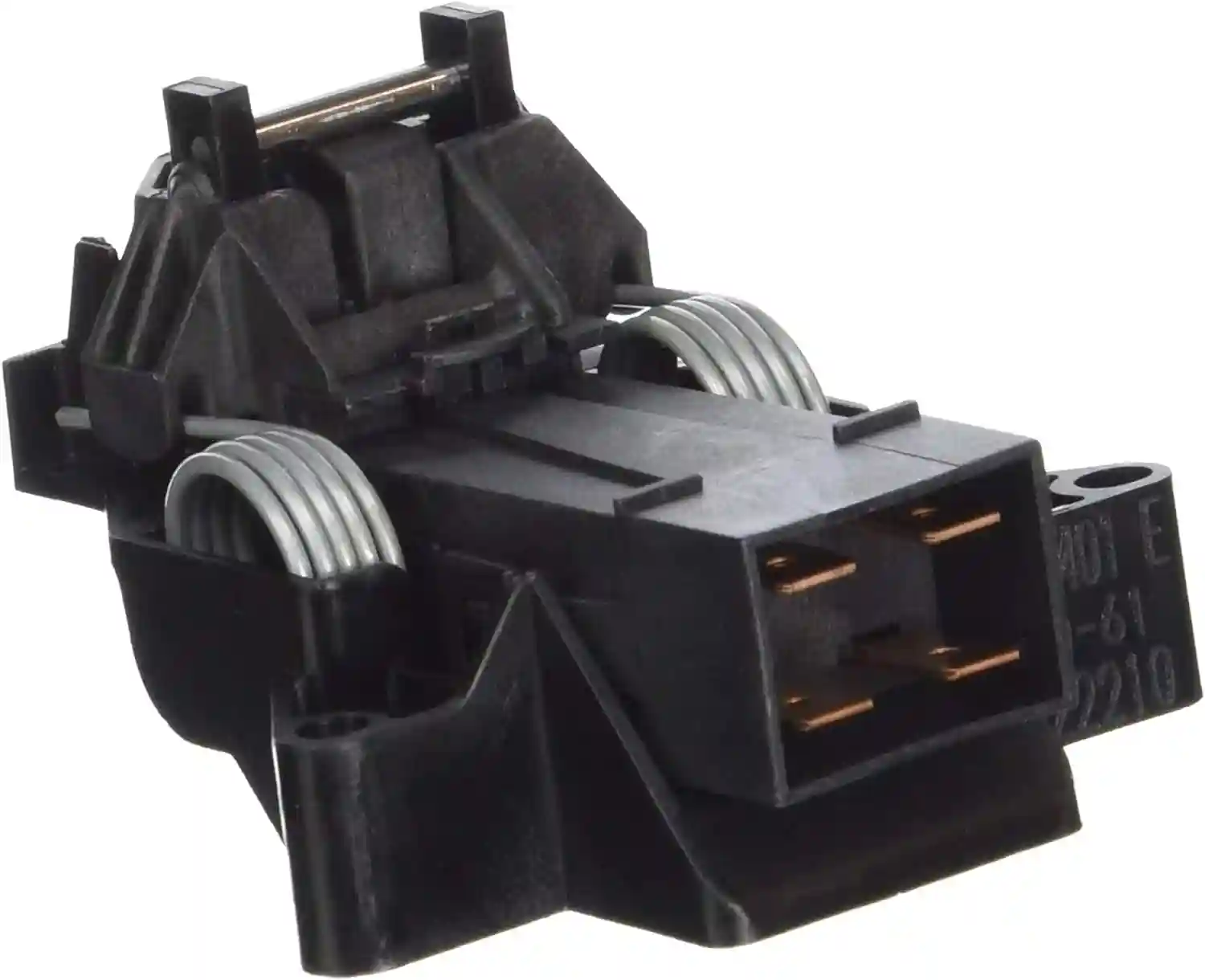

The other solution is to get a new Frigidaire dishwasher door latch-And get the old one out(Check price of a replacement door latch on Amazon).

frigidaire dishwasher code 4

Good news: It’s not a complicated repair (no hard work required)


Frigidaire dishwasher UO code /  Frigidaire gallery dishwasher UO code

This simply means the vent is open (vent not closing)- and it could be brought about by myriad issues including a fan(vent assembly) that’s not working.

Typical behavior here is your dishwasher starts filling with water after you start a cycle.

Then, the vent assembly clicks a couple of times and then your dishwasher stops and throws the error code(on the LED).

Also, you may note water is not draining from your dishwasher and it is not getting items clean.

Frigidaire dishwasher UO code fix (Frigidaire dishwasher UO code reset)

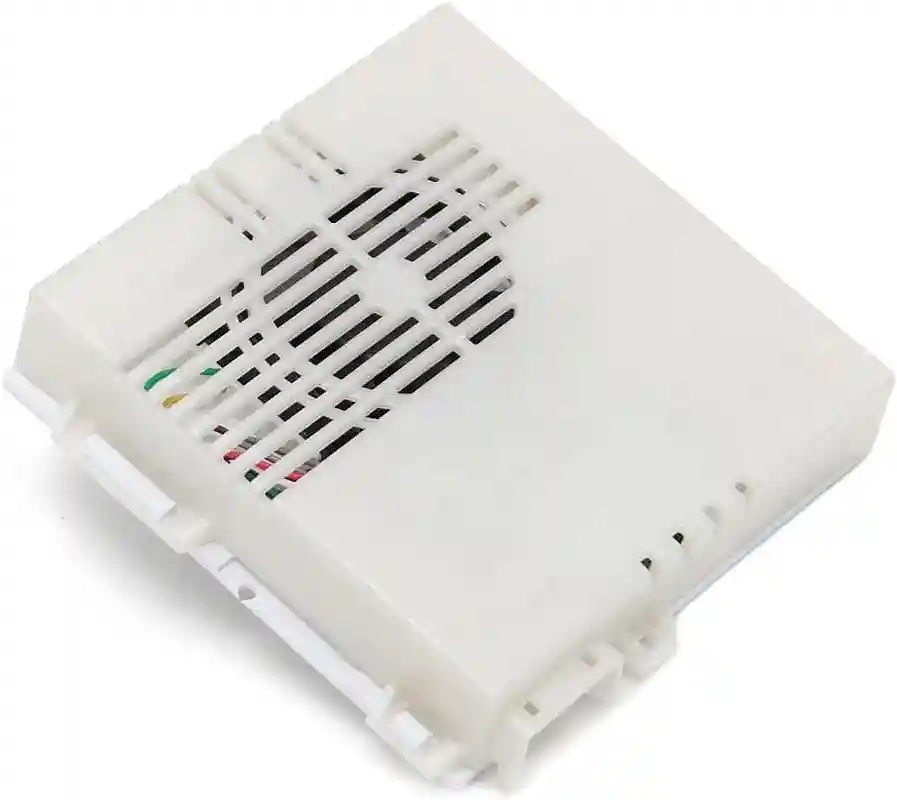

If you’re getting the notorious Frigidaire dishwasher fault code UO, try to replace the fan assembly(it could be defective hence the UO code on Frigidaire dishwasher).

That could do the trick- and it’s a really easy install!

Check the current price of a replacement Frigidaire dishwasher vent assembly.

Quick Tip: Try the above fix if you’re struggling with the Frigidaire Dishwasher Error Code UF (ER/uF indicates the fan is not running)


Frigidaire dishwasher i 40 error code / Frigidaire dishwasher i20 error / Frigidaire dishwasher i30 fault code / Frigidaire dishwasher error code i30  / Frigidaire dishwasher error code 30

What it means:

You have a bad pressure sensor(pressure sensor switch) so you might notice that the drain pump in your dishwasher keeps running(and running) and the appliance won’t move to the next washing step.

How to resolve the code

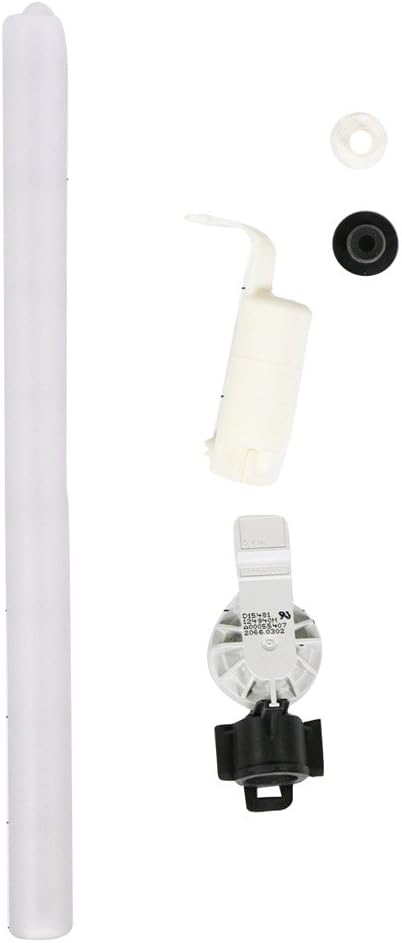

It is recommended you change out the faulty pressure sensor switch (Check price at Amazon).

frigidaire gallery dishwasher trouble codes

Keep in mind that this is the part you probably need to change out if the Frigidaire dishwasher i20 error code and Frigidaire dishwasher i30 fault code are giving you sleepless nights.

It oftentimes works like a charm(Once you get the new part in there) so try and see how it goes.

But it’s also worth trying to clean filters….  and then leave the appliance unused for several days.


Error code i30 could also mean there is a leakage and water has overflown into the bottom tray and therefore, the anti-flooding device has been automatically activated.

Now, many times the culprit is dirty filters so do not forget to give cleaning them a shot- it could save you a few bucks.

I should add that adding too much detergent could also make it overflow with suds, leading to the Frigidaire dishwasher error code 30 (pump will incessantly run)..

Here just grab a Shop Vac then vacuum off the water completely – unplug it from power completely before and also cut off water- reconnect after you’re done and check if the i30 still shows.


Frigidaire Dishwasher HO error or Frigidaire Dishwasher HD Code

What it means:

Heat delay(water not hot enough)

How to resolve the code

Change the temperature sensor.

Check connections to the unit’s heating element (you may have to change it)



Frigidaire dishwasher error code i 4

What it means:

Water overflow problem(perhaps due to a drainage/leakage issue)

The code can also be triggered by leveling fault- if the unit isn’t level

How to resolve the code

  • In addition, avoid putting excessive detergent.
  • Ensure machine is perfectly level(on level surface)
  • Change drain pump- it may not be draining.
  • Check the hose/unit for leaks, sometimes it will not be filling


Frigidaire dishwasher error code LO

What it means:

There’s low liquid remaining in the appliance’s rinse aid dispenser

frigidaire gallery dishwasher uo code

How to resolve the code

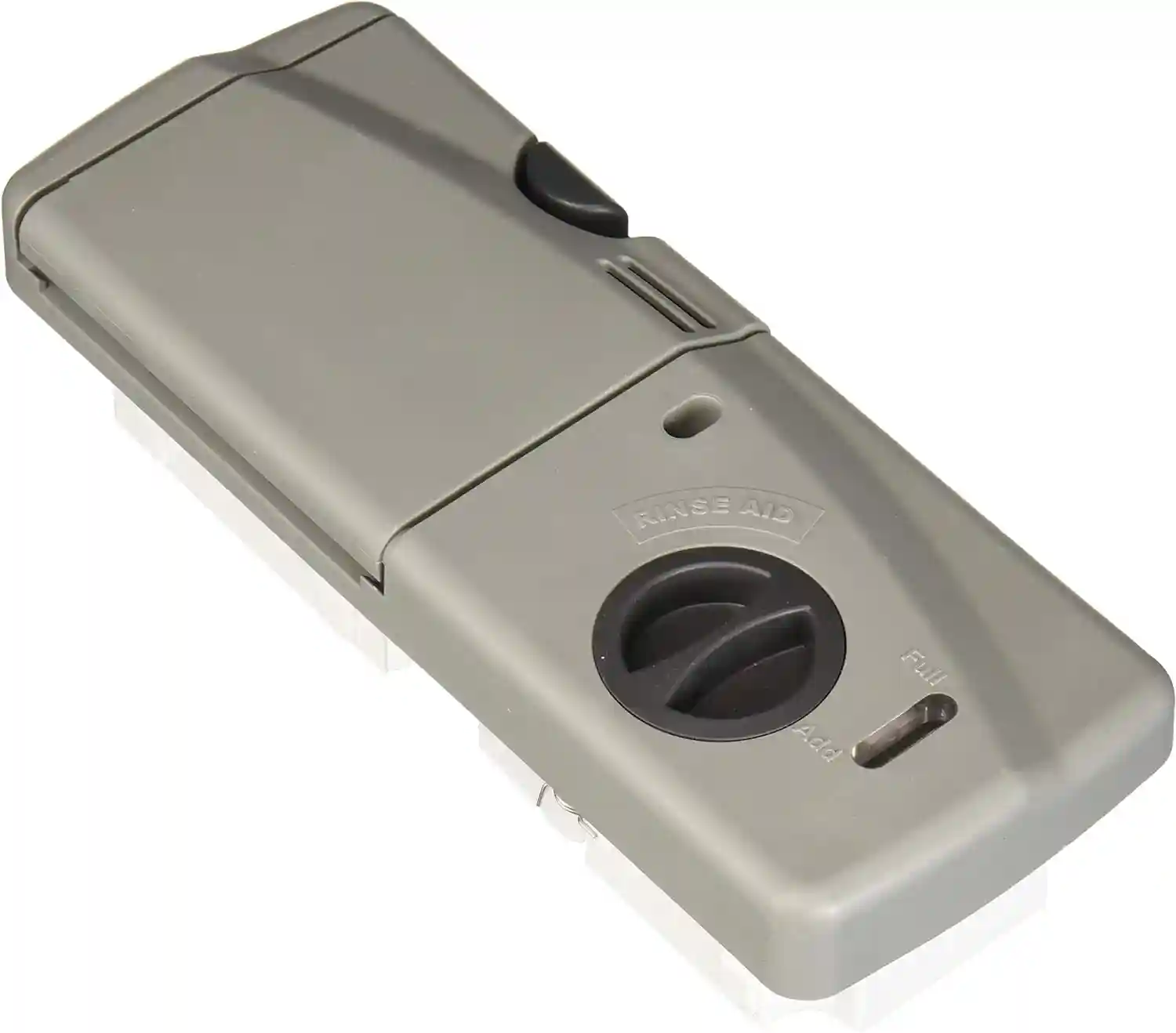

Refill the rinse aid dispenser with recommended liquid rinse agent-The error will stop displaying after 5 seconds(after dispenser is refilled).



Frigidaire dishwasher error code PF

What it means:

There’s a power failure.

You may also see this code when Frigidaire your dishwasher is installed(for the first time).

Note that the machine also tends to flash the “HI-TEMP WASH” + “AIR DRY”/ “NO HEAT DRY” LED’s at the same time with the Frigidaire dishwasher PF code.

Frigidaire dishwasher pf code fix

Touch/Press the “START/CANCEL” pad.

You can now select your desired washing options once more and restart the cycle.



Frigidaire dishwasher error code Cd

What it means:

Door not closed.

How to resolve the code

Nothing to worry about here – it is just a reminder that you have not closed the door.

Do that and the cycle should start.


Frigidaire dishwasher troubleshooting codes continued

Frigidaire dishwasher error code i50

What it means:

The drain pump or motor has failed

How to resolve the code

Get a new drain pump/motor(test the old first, as per the instructions in the tech sheet)

Check price of new drain pump (OEM Part)

Check price of new Frigidaire dishwasher motor


Frigidaire dishwasher error code i60

What it means:

Heating element defective

How to resolve the code

Check connections to the unit’s heating element (you may have to change it)



Frigidaire dishwasher error ER code (Frigidaire dishwasher code ER)

What it means:

The Membrane switch has malfunctioned(Main control is detecting a stuck key/key pressed for 1+ minute).

How to resolve the code

Check connections on the control panel.

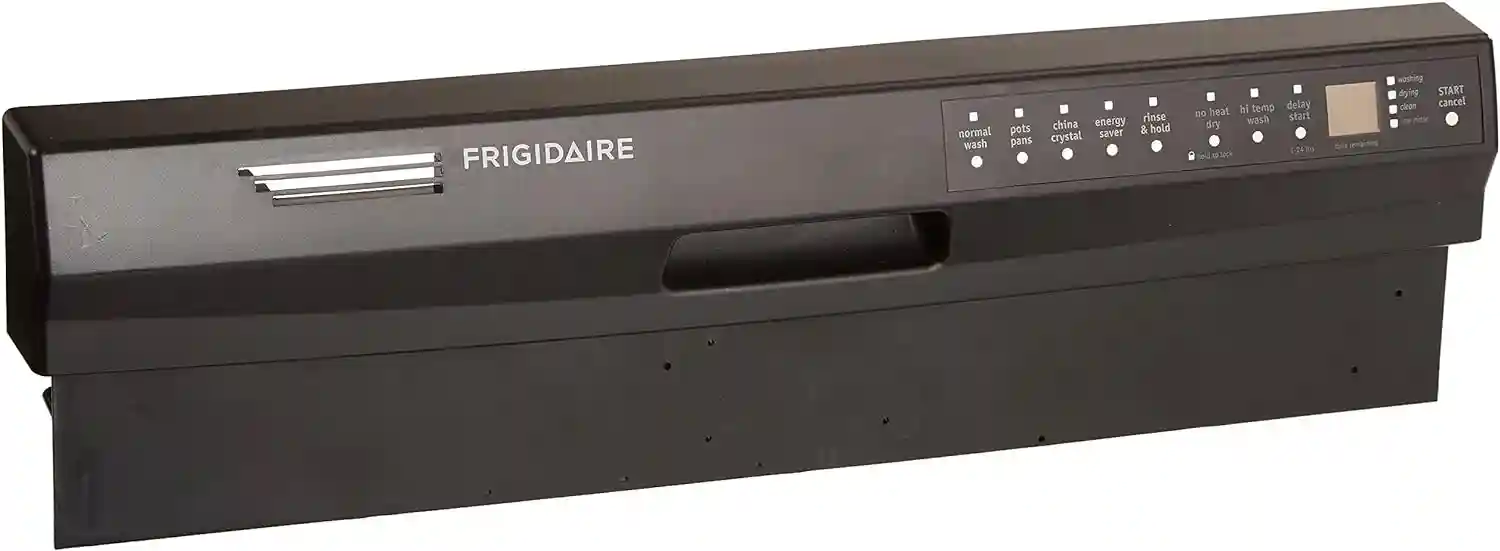

And if you find that all the connections are correct, consider swapping the entire key pad(chances are a keyboard short circuit occurred). Check this OEM Control Board Switch/Assembly Replacement.

Lastly, if error code ER on Frigidaire dishwasher still exist, replace the main control.

Frigidaire dishwasher error ER code


Frigidaire dishwasher touchpad not working? Easy fix



Frigidaire dishwasher error code CE

What it means:

Configuration error

How to resolve the code

Reset it (see steps after the next paragraph)

You might also want to see if there’s a loose connection between main electronic control board and its keypad


Frigidaire dishwasher error code iC0

What it means:

Main Board defective

How to resolve the code

Change it


Frigidaire dishwasher error code iF0, Frigidaire dishwasher error code iFo or Frigidaire dishwasher error code iF1

What it means:

There’s a badly clogged drain line/filter

How to resolve the code

  • Check your Frigidaire dishwasher filter and the sump– you want to see if there are any foam/suds/debris and clean them off thoroughly.
  • Also, check drain hose for clogging– and again clear it(take it off-at the disposal- then blow until you hear it is clear).


Frigidaire dishwasher error code 199

What it means:

Not really an error- just showing 199 minutes remain to delay start.


How to perform Frigidaire dishwasher error codes reset

It is best to first attempt performing a machine reset when you see a code….


Well, sometimes the code is thrown due to a misconfiguration in the appliance’s software(program).

For that reason, resetting your unit back to defaults (default factory settings) could get rid of the system error behind the fault code.

So, how do you reset it?

You simply need to do a typical hard reset- you can just flip the breaker off and then back on.

By the way, you can wait for 30+ minutes before flipping it back on(waiting longer could help clear up the memory completely).

After that check if there are still errors..and proceed with the above recommended Frigidaire dishwasher troubleshooting codes  steps if you did not succeed.

Frigidaire dishwasher UO code fix

Frigidaire dishwasher troubleshooting codes  (Frigidaire dishwasher troubleshooting error codes) – Final words

If, by any chance, the Frigidaire dishwasher code your unit is showing is not in this Frigidaire dishwasher repair manual, then search for your specific model’s tech sheet.

That’s where you are likely to find all Frigidaire dishwasher fault codes that are specific to your model along with how to resolve each.

Oh, and you can take the unit into diagnostic(test) mode by pressing the High Temp together with the Start/Cancel keys simultaneously(until Frigidaire dishwasher test mode starts)…

Why we suggest so is because you can further troubleshoot what’s actually making your appliance act up in a methodical way.

Otherwise, we hope this has helped you reset Frigidaire dishwasher error code ’s you were seeing on the display.
